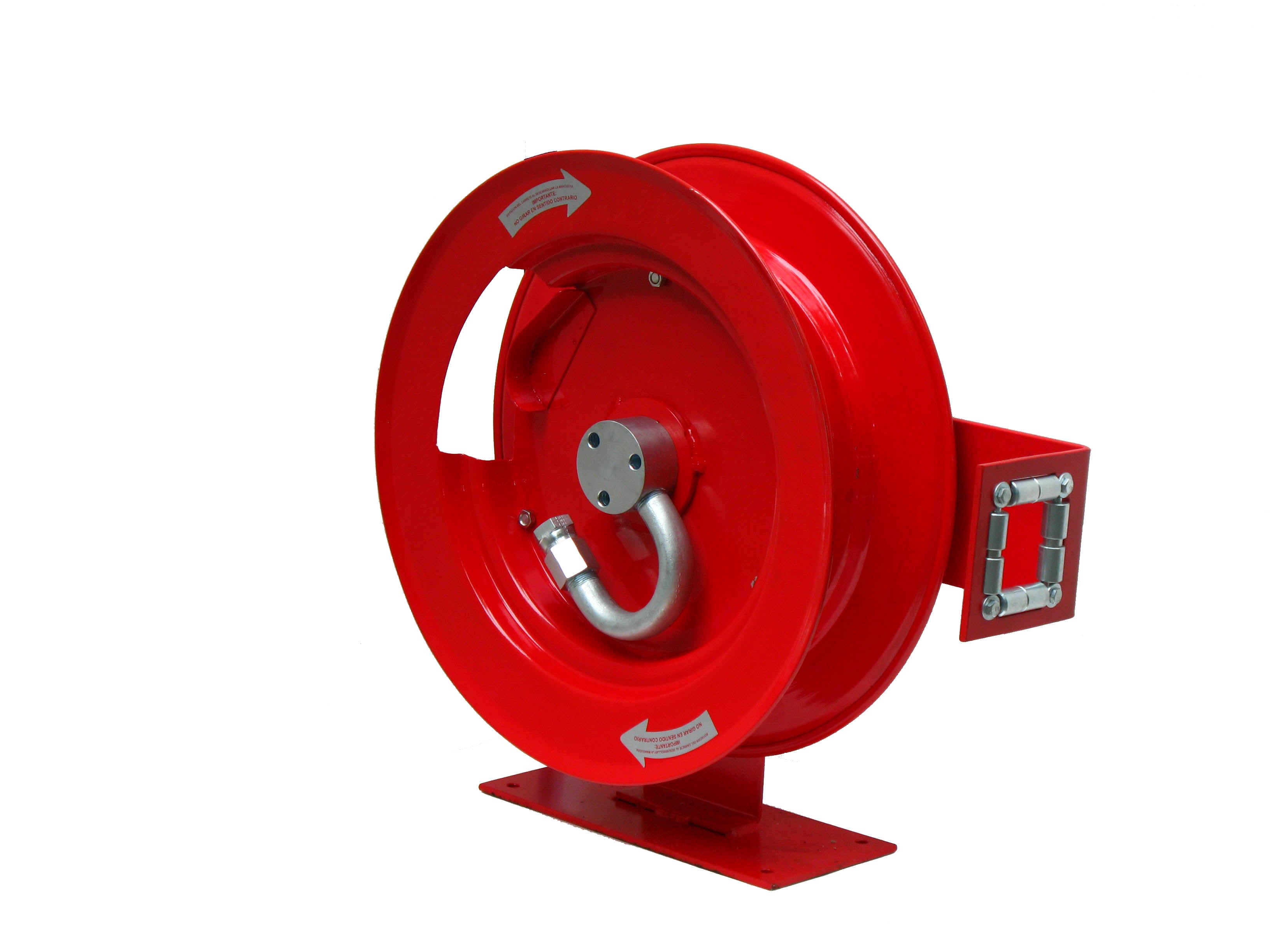

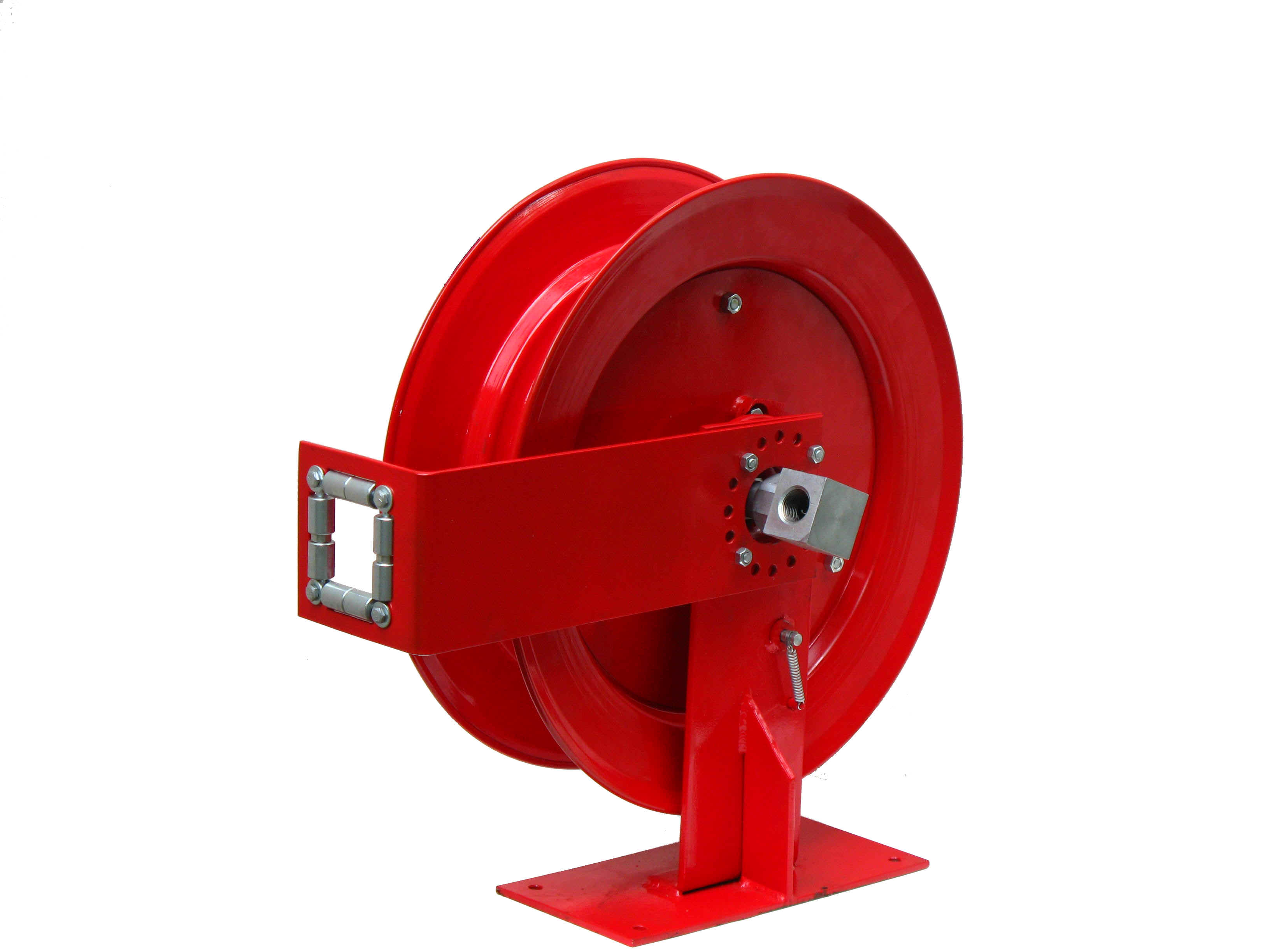

DESCRIPTION: Heavy Duty High Flow Reel Assembly

1: Heavy Duty Reel Assembly; Spring powered reel;
2: 3/4" NPT (F) Inlet and Outlet
3: Order Connecting Hose Separately
4: Additional Information and Specifications:
5:Includes steel rollers and Heavy Steel Mounting Base.
7: Type: Medium Pressure: 2000 PSI
8: Inlet / Outlet: 3/4"(19MM)

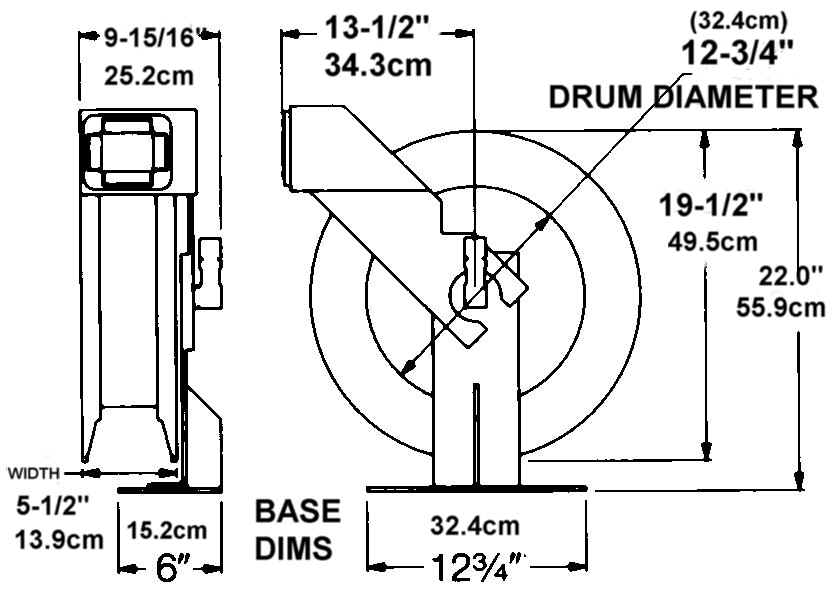

9: Sheath Width Outside to Outside: 5-1/2" (approx-13.97CM)
10: Sheath Width Indiside to Inside: 4-7/8" (approx)(12.4CM)
11: Sheath Depth: 4-3/4"(12.1CM)
12: Diameter of Sheath: 19-1/2"(49.5CM)
13: Base: 12-3/4"(32.4CM) x 6"(15.24CM)
14: Base Thickness: 1/4" Plate Steel with 4 3/8"(11.1CM) DIA mounting holes for easy mounting of the base to any support column, rafter or floor
15: Length of Arm: 15"(38.1CM)
16: Solid Metal Rollers with a diameter of: 2-1/8"(5.4CM) x 2-1/8"(5.4CM)
17: Applications: Oil, ATF, Antifreeze, Water, Air
Carries Hose:
  SAE100R3 73 50 FT(15.2mtrs)
  SAE100R1 78 25 FT(15.2mtrs) 3/4"ID X 1-1/4" OD
  SAE 100R3 74A 40 FT (12.2mtrs)
  SAE100R6 74 50 FT(15.2mtrs)

18: BOX Weight: 80LBS

19: BOX Dimensions: 24" x 24" x 16" (61cm x 61cm x 40.6cm)

20: Application:  Installed Lube in Garage, Maintenance Facility, Quick Lube, Industrial, Factory, Mines, Mining Vehicle, Service Vehicle, Lube Truck
21: Price
22: Download PDF file.
