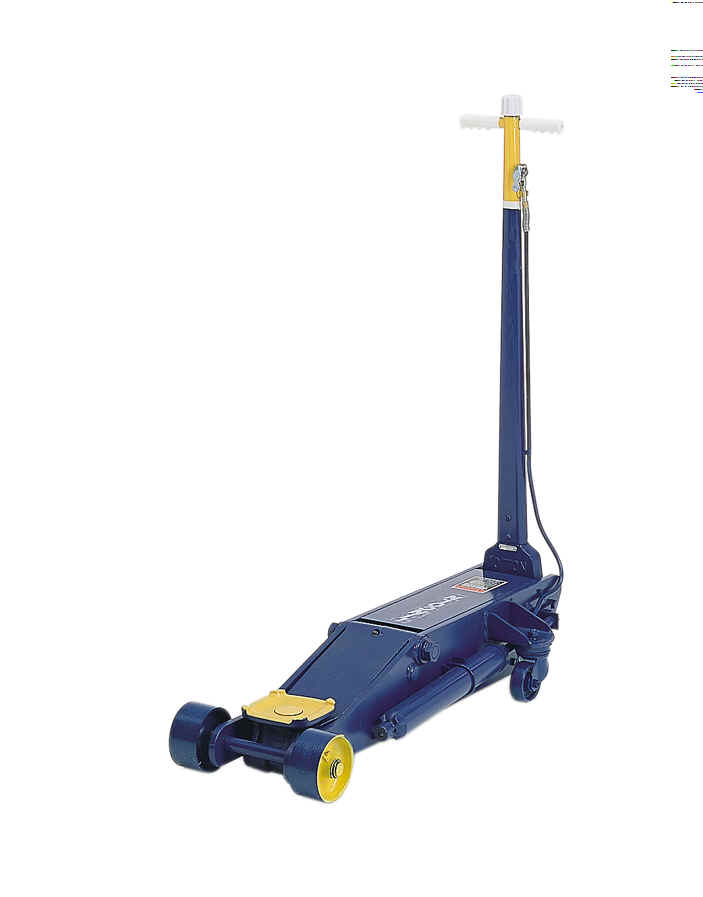

W93662 - Air/Manual 10 Ton Capacity Hydraulic Service Jack

Heavy Duty Service 10 Ton Service Jackw93662.tif (229054 bytes)

  1. Dual Pump Action provides speed to contact the load and power to lift.
  2. Rugged Solid Steel Sideplates add strength.
  3. Chassis and Handle reach under long, low overhangs.
  4. Low Handle Effort (even at near capacity loads) greatly reduces operator fatigue.
  5. Large Handle Knob provides fine load release control.
  6. Handle Adjusts to Three Pumping Positions.
  7. Forged Steel Hydraulic Unit Base is sealed for long life,   and reliabiliity.  Keeps out dirt and grime.
  8. Large Forged Steel Lifting Cap adds durability.
  9. Large full swivel lifting cap and ball bearing casters make positioning easy.
  10. Automatic Valve prevents overloading.
  11. Operates Manually or with Air.
  12. Patented "Speed Pak" eliminates handle pumping, saves lift times.  It lets the air do the work.
  13. Loads moved into position hydraulically.  Air hose may be disconnected for other uses.
  14. Price???

    15.









Model Capacity Low
Height		 High
Lift
Point		 Power
Raise		 Cap
Dia.		 Handle
Length		 Chassis
Length		 Chassis
Height		 Min PSI
for
Rated
Load
W93662 10 Ton 5-7/8" 26" 20-1/8" 7-1/2" 50" 53-3/8" 9-3/4" 140
