| DESCRIPTION: | HW93716 | |||||||||

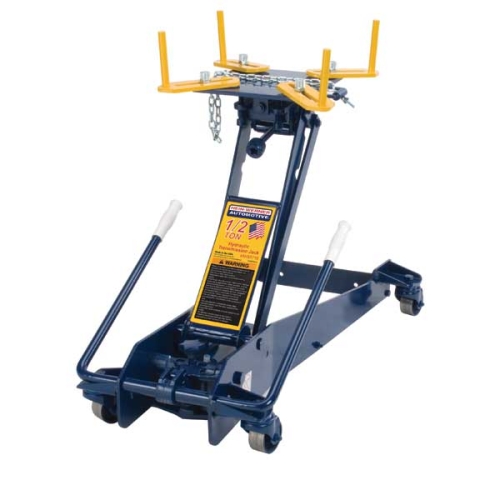

| 1: Handles passenger car and light truck transmissions. 2: Direct Replacement for: W93716; 93716; 95716; 91716 and YA876. 3: Handles the Removal and Installation of Passenger Car and Light Truck Transmissions. 4:Fits Front Wheel Drive Transaxles and any air cooled VW Engine. 5: Smooth Hydraulic Operation permits precise raising and lowering. 6:Four Adjustable Load Support Arms swivel to fit around all transmission pan flanges. 7: Aligns Splines and Bolt Holes. Easily adjusts to .030 inches or less. 8: Dual Pump Handle allows jack to be operated from either side. 9: Lifting Head tilts 60 Deg forward, 18 Deg Backward, 12 Deg sideways(right or left). 10: Release Valve easily accessible for sensitive load lowering. 11: Load restraining chain is vital for raising and lowering safety. 12: Precision yet simple operation saves time and effort. 13: Wide base provides stability. 14: Fully Repairable and Replaceable. 15: Two Year Limited Warranty from the Manufacturer. 16: Two Year Limited Warranty available from the Manufacturer. 17: MADE IN USA 18: Price????? 19: Download PDF file. |
 |
|||||||||
| MODEL | CAPACITY | MINIMUM HEIGHT | MAXIMUM HEIGHT | LIFTING HEAD SIZE | CHASSIS LENGTH | CHASSIS WIDTH | FORWARD TILT | REARWARD TILT | SIDEWAYS TILT | GROSS WEIGHT(PAIR) |
| HW93716 | 1/2 TON | 5-1/2" | 23-1/8" | 9.0"X9.0" | 33.0" | 20-1/4" | 37 DEG | 26 DEG | 17 DEG L&R | 115LBS |
| 14.0CM | 58.7CM | 22.9CMX22.9CM | 83.8CM | 51.4CM | 52.2KG | |||||
